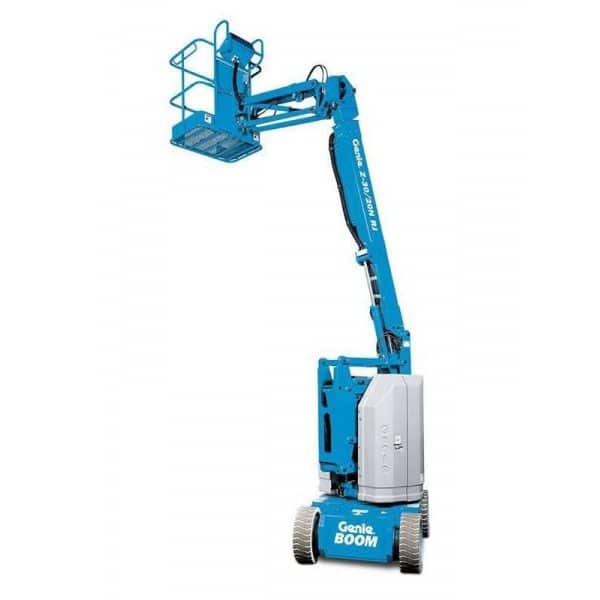

The Genie Z-30/20 N is the smallest model of articulating boom lift that Genie offers. Its compact frame with a width of only 3 ft 11 in allows it to fit into tight spaces that would trouble many other lifts on the market. Additionally, it still sports a respectable lift height of 36 ft, meaning it still competes with larger lifts on the market. Consequently, it can extend to its respectable height from tight spaces between obstacles, giving it an even more improved range of effectiveness. Spec Sheet

Applications

The Genie Z-30/20 N is a perfect choice for precise work in tight spaces. This machine sports an articulating jib for precise movement. Consequently, it can easily position workers wherever they need to go. Because of its compact frame, this machine works perfectly in warehouses or crowded lots. It easily maneuvers around difficult obstacles due to its zero tailswing. Consequently, there is little risk in moving it through tight spaces to reach whatever an operator needs.

Check Out Our Genie Z-30/20 N Boom Lifts!



Genie Z-30/20 N Specifications

The Genie Z-30/20 N offers:

•  36 ft. maximum working height
• 500 lb. lift capacity
• Zero turntable tailswing



Power Source
Power Type	Electric
Battery	48 V DC
Capacity – Hydraulic Tank	4 gal / 15.1 L



Performance
Drive Speed – Stowed	3.0 mph / 4.8 km/h
Drive Speed – Raised	0.68 mph / 1.1 km/h
Gradeability – Stowed	35 %
Platform Capacity – Restricted	500 lb / 300 kg
Platform Capacity – Unrestricted	1000 lb / 454 kg
Maximum Turning Radius – Outside	10 ft 7 in / 3.23 m
Maximum Turning Radius – Inside	5 ft 5 in / 1.65 m



Dimensional Data
Ground Clearance	3.5 in / 0.09 m
Machine Height	6 ft 7 in / 2 m
Machine Length	16 ft 9 in / 5.11 m
Machine Width	3 ft 11 in / 1.19 m
Platform Dimension A	2 ft 6 in / 0.76 m
Platform Dimension B	3 ft 10 in / 1.17 m
Tailswing	0 in / 0 cm
Tire Size	22x7x17.5 in / 56x18x45 cm



Reach Specifications
Vertical Jib Rotation	139 Degrees
Horizontal Outreach	21 ft 5 in / 6.53 m
Platform Height	30 ft / 9.14 m



General
Tire Contact Pressure	103 psi / 710 kPa
Machine Weight	14,421 lb / 6,541 kg
