JLG 1350SJP

  • $325,104.06
Call for price

Product Information

MakeJLG
Model:1350SJP
Year:
Serial #:
Status:New
Location:Pennsylvania
Product Drive:4wd
Fuel Type:Diesel
Platform Height:135'
Working Height:141'
Tires:Foam Filled

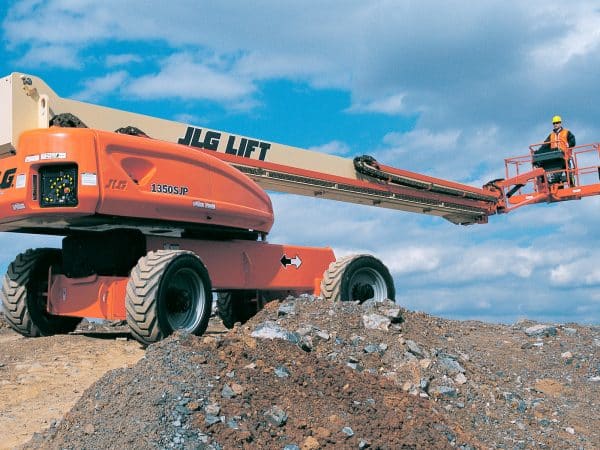

When your job demands both height and reach, enlist the Ultra Series Articulating models. The 1350SJP gets you and your load up to 1000 lbs. from the ground to 135 feet in 95 seconds.



Manual Spec Sheet Get Quote

To see our stock of JLG 1350SJP boom lifts, click here.



Key Specs

  • Platform Height: 135 ft / 41.15 m
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Horizontal Outreach: 80 ft / 24.38 m

Key Features

  • Ground to 135 ft up in 95 seconds
  • Strong 100,000-psi steel and a dual 1,000 / 500 lb capacity give you stability and capacity
  • Equipped with a fuel-efficient Tier 4 engine







Power Source
Auxiliary Power 12 Volts DC
Capacity – Fuel Tank 31 gal. / 117.35 L
Engine Type – Diesel DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp



Performance
Axle Oscillation 1 ft / 0.3 m
Drive Speed – 4WD 3.3 mph / 5.23 km/h
Gradeability – 4WD 45 %
Platform Capacity – Restricted 1000 lb / 453.59 kg
Platform Capacity – Unrestricted 500 lb / 226.80 kg
Swing 360 Degrees
Swing Type Continuous
Turning Radius – Outside (axles extended) 19 ft 4 in. / 5.89 m
Turning Radius – Outside (axles retracted) 22 ft 6 in. / 6.86 m
Jib – Range of Articulation 130 Degrees



Dimensional Data
Transport Length 38 ft 11 in. / 11.86 m
Ground Clearance 1 ft / 0.3 m
Machine Height 10 ft / 3.05 m
Machine Length 48 ft 10 in. / 14.88 m
Machine Width 8 ft 2 in. / 2.49 m

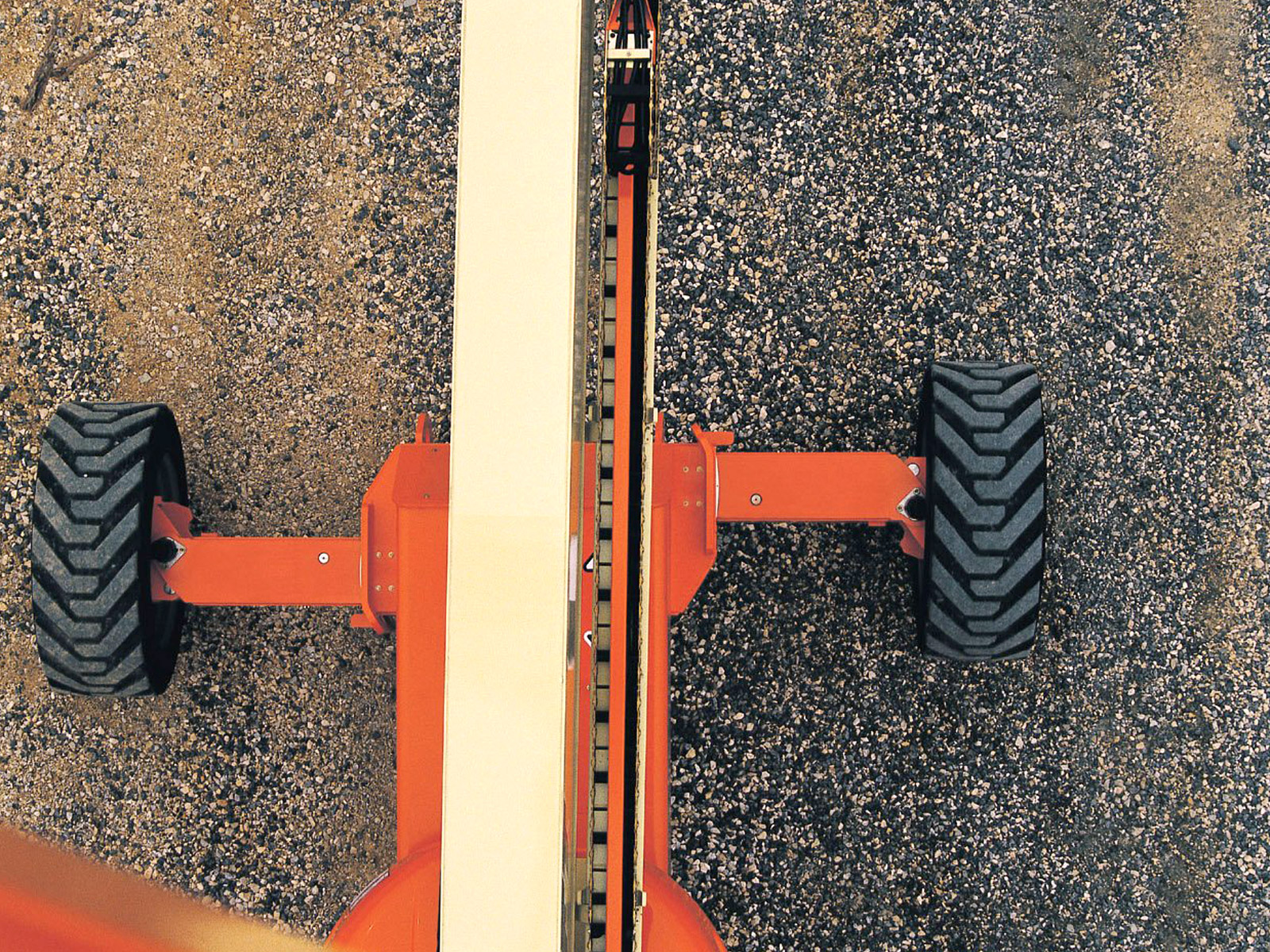

Overall Width (Axles Extended) 12 ft 6 in. / 3.81 m
Platform Dimension A 3 ft / 0.91 m
Platform Dimension B 8 ft / 2.44 m
Tailswing 5 ft 6 in. / 1.68 m
Tire Size 445/50D710 Foam-Filled



Reach Specifications
Horizontal Jib Rotation 180 Degrees
Horizontal Outreach 80 ft / 24.38 m
Platform Height 135 ft / 41.15 m



General
Capacity – Hydraulic Reservoir 55 gal. / 208.20 L
Maximum Ground Bearing Pressure 107 psi / 7.49 Kg/cm2
Machine Weight 45000 lb / 20411.66 kg
