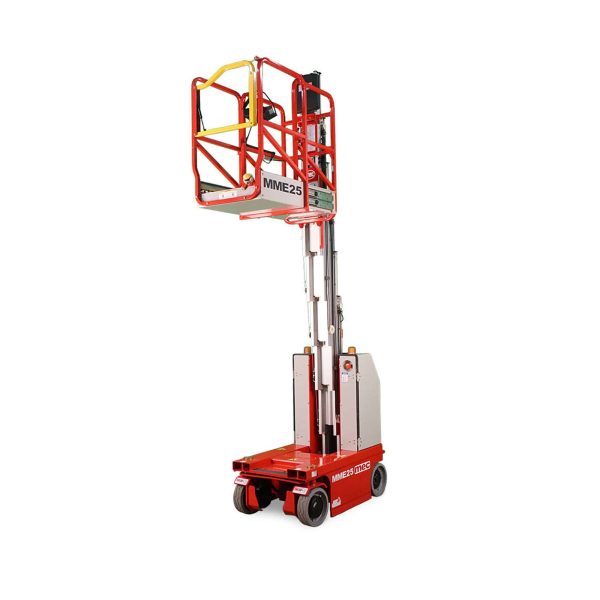

The MEC MME25 is a vertical mast lift made get operators through tight spaces to greater heights. With a frame only 31.5 inches in width, this machine fits in tight spaces without issue. Consequently, it can effectively position itself to make expert use of its 25 foot platform height. This positions the MEC MME25 as one of the most versatile machines for warehouse use, able to get into position and also reach greater heights than many of the smaller options available. Additionally, the MEC MME25 comes with MEC’s patented Leak Containments System. An array of trays within the machine catches any leaking fluid and also stops it from spilling out. Consequently, flooring that might otherwise be ruined by hydraulic fluid is kept safe. Additionally, this is at no cost to the operator’s safety. Spec Sheet

MEC MME25 Vertical Mast Lift Applications

The MEC MME25 is built to work in compact areas better than most. MEC consistently emphasizes the benefits of smaller designs in their lifts. Consequently, machines like the MME25 are well-built and ready to fill their role. This vertical mast lift is among the best options around for work in warehouses and other enclosed spaces. It also easily fits into crowded areas. Additionally, it does so without the risk of hydraulic fluid leaks ruining flooring.

At-a-Glance Specifications

The MEC MME25 vertical mast lift offers:

• 25′ (7.6 m) maximum platform height
• 31′ (9.6 m) maximum working height
• 31.5″ (0.8 m) machine width
• 350 lb (159 kg) platform capacity
• 350 lb (159 kg) roll-out deck capacity



Power Source
Power Type	Electric
Battery	2x12V 115Ah



Performance
Drive Speed – Stowed	2.5 mph / 4.0 km/h
Drive Speed – Raised	0.7 mph / 1.1 km/h
Gradeability – Stowed	25 %
Platform Capacity	350 lb / 159 kg
Roll-Out Deck Capacity	350 lb / 159 kg



Dimensional Data
Ground Clearance	2.36 in / 6 cm
Stowed Height	43.3 in / 1.1 m
Platform Height	25 ft / 6 m
Machine Length	56.7 in / 1.44 m
Machine Width	31.5 in / 0.8 m
Platform Dimension A	29.5 in / 0.75 m
Platform Dimension B	28.5 in / 0.72 m
Tire Size	12.7 in x 3.9 in



General
Machine Weight	3,310 lb / 1,501 kg
