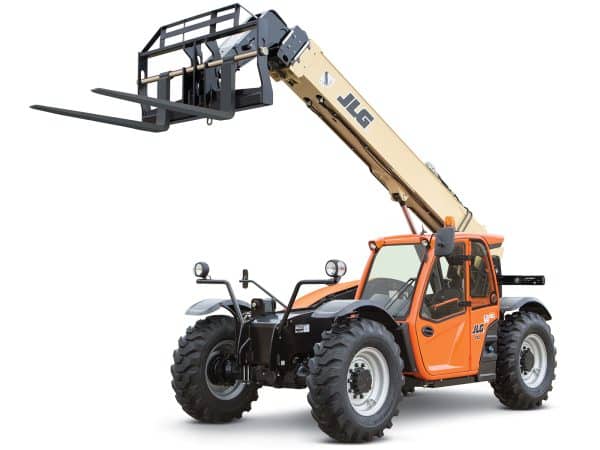

The JLG 742 is a more compact telehandler than most other options while still sporting high lift capacity. Consequently, this machine does a great job of transporting heavy loads to and from smaller spaces than larger telehandlers could reach. Its 7,000 pound lift capacity is less than larger options can carry, but the versatility provided by the compact frame more than makes up for it, as does the lift’s care for operator comfort to ensure lessened fatigue that comes from normally working with lifts. If all of this sounds worthwhile, the 742 might be the lift for you.
Applications
The JLG 742 is ideal for transporting heavy loads through tight spaces. Its compact frame of only 8 feet in width combined with its intuitive, responsive controls consequently make it easy to maneuver around whatever obstacles your work may face. It can transport up to 7,000 pounds, which can be lifted for even more efficient transportation. Additionally, the cab offers great visibility all around the lift, so driving has little risk of accident.
Operator comfort is also a top priority of this machine. The cab is spacious and a built in armrest to the joystick controller make operating for long periods of time easy as can be.
Check Out Our JLG 742 Telehandlers!
JLG 742 Specifications at a Glance
The JLG 742 offers:
-
- 7,000 lb. maximum lift capacity
- 42 ft. maximum lift height
- Stabil-Trak rear axle stabilization
- Spacious cab with increased visibility
| Performance | |
| Drawbar Pull | 19000 lb / 8618.26 kg |
| Lift Capacity at Full Height | 6000 lb / 2721.55 kg |
| Lift Capacity at Max Reach | 1000 lb / 453.59 kg |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 7000 lb / 3175.15 kg |
| Maximum Lift Height | 42 ft / 12.8 m |
| Maximum Reach | 29 ft 1 in. / 8.86 m |
| Speed – Maximum Telescope In | 11.5 sec. |
| Outside Turning Radius | 12 ft / 3.66 m |
| Speed – Maximum Lift | 11.3 sec. |
| Speed – Maximum Lower | 9 sec. |
| Outriggers or Stabilizers | No |
| Speed – Maximum Telescope Out | 11 sec. |
| Speed – Maximum Travel | 18 mph / 28.97 km/h |
| Dimensional Data | |
| Ground Clearance | 1 ft 5 in. / 0.43 m |
| Machine Height | 8 ft / 2.44 m |
| Machine Length | 18 ft 11 in. / 5.77 m |
| Machine Width | 8 ft 1 in. / 2.46 m |
| Tire Size | 370/75-28 |
| Wheelbase | 11 ft 3 in. / 3.43 m |
| Power Source | |
| Capacity – Fuel Tank | 38.3 gal. / 144.98 L |
| Engine Horsepower | 74 hp / 55.20 kW |
| Engine Manufacturer | Cummins |
| Engine Model | QSF 3.8L Tier 4 Final |
| Maximum Engine RPM | 2500 rpm |
| General | |
| Axle-Front | High Bias, Limited Slip |
| Axle-Rear | Oscillating |
| Function Pump Type | Load Sensing Piston |
| Operating Vehicle Weight | 21476 lb / 9741.35 kg |
| Service Brake Type | Wet Multi-Disc |
| Transmission – Nr Forward Gears Standard | 4 |
| Transmission – Nr Reverse Gears | 3 |
| Transmission Type | Powershift |
