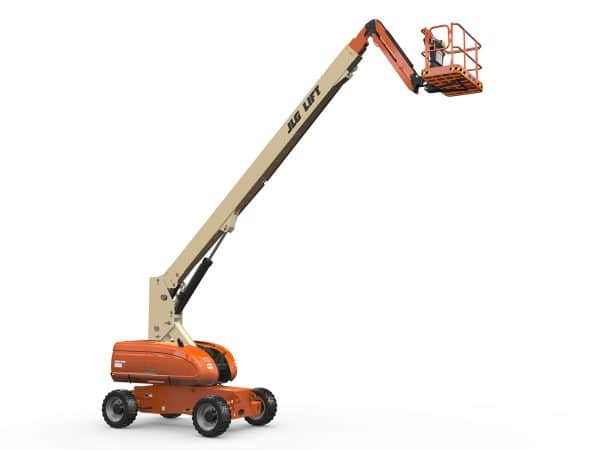

JLG 860SJ

Access Lift > Featured Inventory > JLG 860SJ

JLG 860SJ

  • $191,732.50
Call for price

Product Information

MakeJLG
Model:860SJ
Year:
Serial #:
Status:New
Location:Pennsylvania
Product Drive:4wd
Fuel Type:Diesel
Platform Height:86'
Working Height:92'
Tires:Foam Filled

When you need extra reach, the 1850SJ will take you to greater heights. This Ultra Series Telescopic Boom Lift raises you and your load up to 185ft to help you get the job done.



Manual Spec Sheet Get Quote



Key Specs

  • Platform Height: 86 ft / 26.21 m
  • Platform Capacity – Restricted: 750 lb / 340.19 kg
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Horizontal Outreach: 75 ft / 22.86 m

Key Features

  • Reach full elevation in less than 70 seconds
  • Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions
  • Equipped with a fuel-efficient Tier 4 engine



To see out stock of JLG 860SJ boom lifts, click here.



Power Source
Auxiliary Power 12 Volts DC
Capacity – Fuel Tank 31 gal. / 117.35 L
Engine Type – Diesel DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Type – Dual Fuel Ford MSG425 84hp



Performance

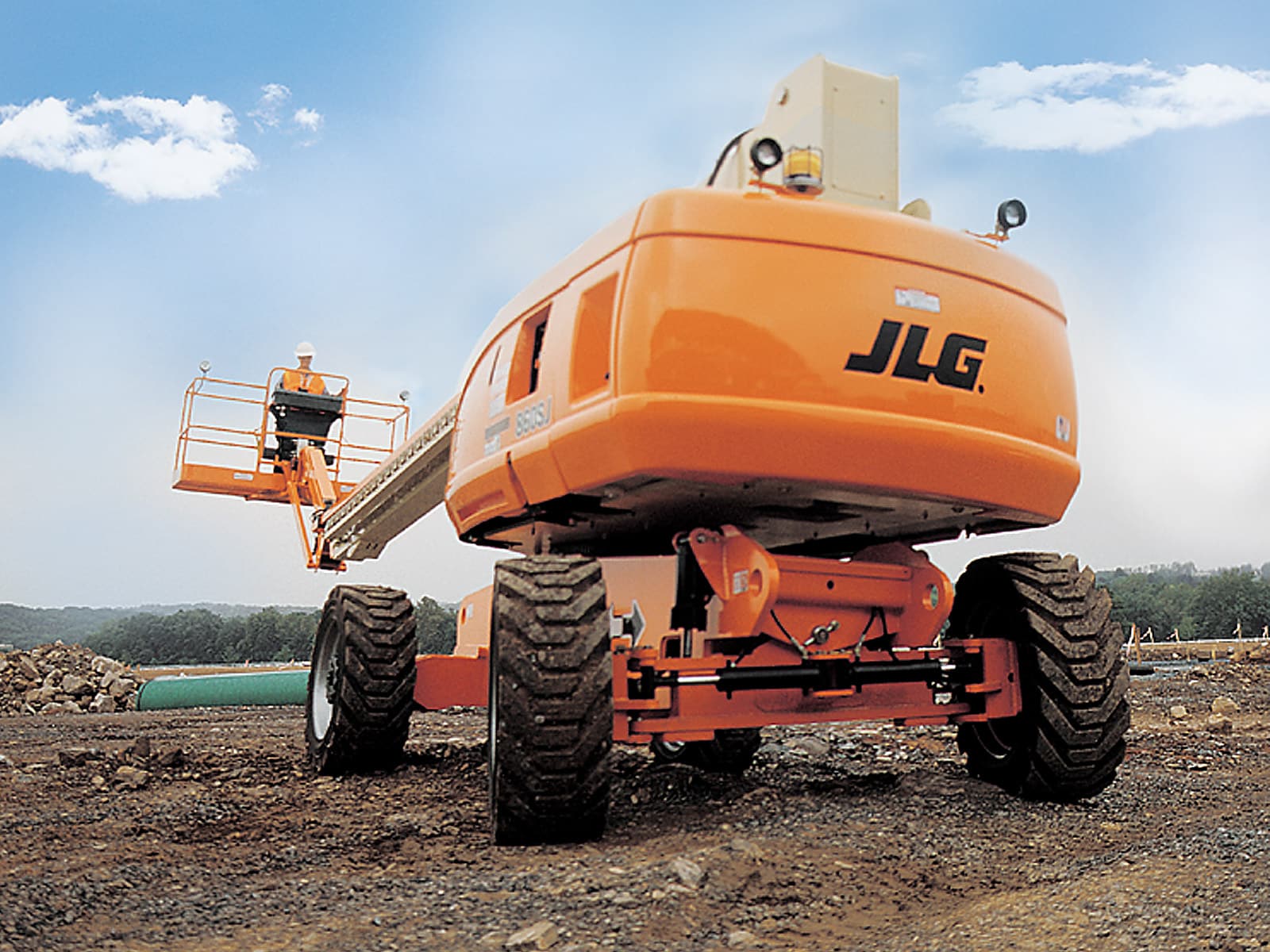

Axle Oscillation 8 in. / 0.2 m
Drive Speed – 2WD 3.5 mph / 5.63 km/h
Drive Speed – 4WD 3.5 mph / 5.63 km/h
Gradeability – 2WD 25 %
Gradeability – 4WD 45 %
Platform Capacity – Restricted 750 lb / 340.19 kg
Platform Capacity – Unrestricted 500 lb / 226.80 kg
Swing 360 Degrees
Swing Type Continuous
Turning Radius – Outside 19 ft 8 in. / 5.99 m
Jib – Range of Articulation 130 Degrees



Dimensional Data
Ground Clearance 11 in. / 0.28 m
Machine Height 10 ft / 3.05 m
Machine Length 40 ft / 12.19 m
Machine Width 8 ft 2 in. / 2.49 m
Platform Dimension A 3 ft / 0.91 m
Platform Dimension B 8 ft / 2.44 m
Tailswing 4 ft 8 in. / 1.42 m
Tire Size 15-625 Foam Filled Lug Tread



Reach Specifications
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 75 ft / 22.86 m
Platform Height 86 ft / 26.21 m



General
Capacity – Hydraulic Reservoir 48 gal. / 181.70 L
Maximum Ground Bearing Pressure 81 psi / 5.67 Kg/cm2
Machine Weight 36888 lb / 16732.12 kg
